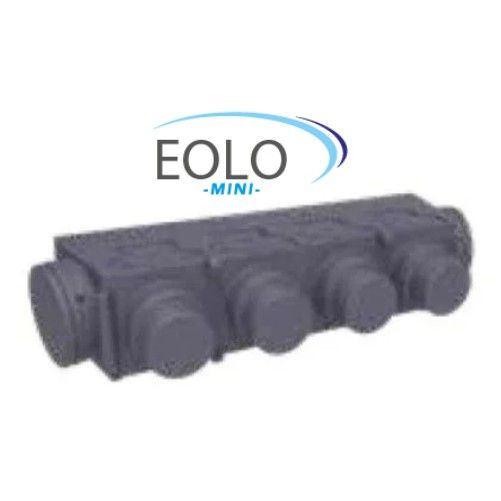

TECNOSYSTEMI EOLO MINI 4 VIE Insulated Sintered Polystyrene Plenum for ProAir Systems - 4 Zones

Eolo Mini 4-way insulated plenum, made of sintered polystyrene, equipped with 4 front collars (∅ 125 or 150) and 2 side collars (∅ 200). WARNING: please specify the exact brand and model of the ducted unit.

€168.00

TECNOSYSTEMI EOLO MINI 4 VIE Insulated Sintered Polystyrene Plenum for ProAir Systems - 4 Zones is available to buy in increments of 1

Order now for delivery between 12 November and 17 November

Details

TecnoSystemi’s Eolo Mini insulated plenums, made of expanded sintered polystyrene, are compatible with numerous ducted unit models from a wide range of brands. Eolo Mini is available in 2 versions (with 3 or 4 outlets), in addition to the two side collars (∅ 200 mm) which can be used as additional outlets.

Available Models (dimensions in millimeters).

Eolo Mini 3-Way:
- W 818 x H 217 x D 346;
- Max template opening width: up to 600;
- Max template opening height: up to 185;
- Front collars included: 3x ∅125/150;
- Side collars included: 2x ∅200.

Eolo Mini 4-Way:
- W 1008 x H 217 x D 346;
- Max template opening width: up to 795;
- Max template opening height: up to 185;
- Front collars included: 4x ∅125/150;
- Side collars included: 2x ∅200.

Technical Features:
- Made of expanded sintered polystyrene;
- Thermal conductivity: 0.030 / 0.033 W/mK in compliance with EN 12667 / EN 12939 standards;
- Water vapor resistance: 40 / 70 µ in compliance with EN 12086 standard;
- Operating temperature: – 30°C / + 90°C;
- Water absorption: % by volume in compliance with EN 12087 standard;
- Reaction to fire: Class E in compliance with EN-ISO–11925–2 standard;
- Thermal performance (30 mm thickness): 0.95 m²K/W;
- Made of graphite-infused EPS material;
- Collars integrated into the plenum;
- Total depth including collar: 350 mm;
- Unit mounting flange included;
- 150/125 mm front collars;
- 200 mm side collars.

WARNING: When ordering, it is essential to specify the make and model of the ducted unit that will be equipped with the plenum.

More Information

More Information
Dimensions (LxHxD) mm	1008x217x346
Weight (Kg)	n.d.
