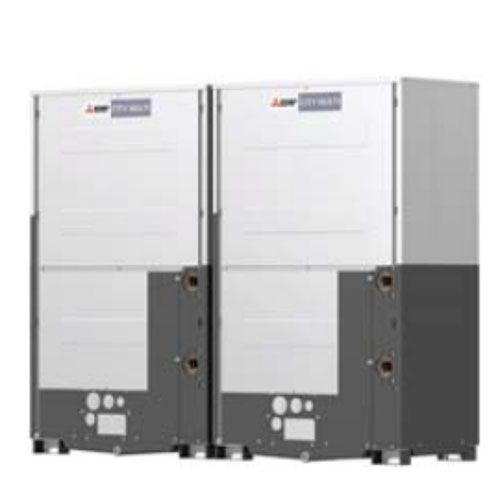

MITSUBISHI ELECTRIC PQHY-P700YSLM-A Modular Outdoor Condensed Water Unit WY Series - 240000 BTU

Outdoor modular unit Mitsubishi Electric PQHY-P700YSLM-A water condensed Series WY (28 HP, R410A refrigerant gas and 240000 BTU).

Connectable indoor units: 50-130% of the capacity of the outdoor unit (P350-P910).

The WY City Multi Series VRF systems use water condensation and evaporation units. Up to 26 indoor units can be connected to outdoor units (single system) and up to 50 indoor units (modular system).

€26,521.00

  CUSTOM OPTIONS

MITSUBISHI ELECTRIC PQHY-P700YSLM-A Modular Outdoor Condensed Water Unit WY Series - 240000 BTU is available to buy in increments of 1
Order now and receive between 23 December and 26 December

Mitsubishi Electric outdoor unit modulare PQHY-P700YSLM-A water condensed Series WY.

This model is composed of the modules: PQHY-P350YLM-A + PQHY-P350YLM-A.

City Multi Series WY VRF systems inherit all the Y series benefits using water condensation and evaporation units. Water condensing units have the peculiarity of being able to be installed inside buildings, allowing extreme design flexibility. With regard to the outdoor unit, up to 26 indoor units can be connected to a single condensing unit and up to 50 indoor units to a modular system with both individualized and centralized control. The 2-pipe system allows the transition from cooling to heating and vice versa, ensuring high comfort in all air-conditioned environments.

Geothermal applications
The outdoor units series WY lend themselves perfectly to the field of geothermal energy because it exploits a fluid carrier such as water: starting from 10 meters below ground level, it maintains a constant temperature thus avoiding significant temperature variations throughout the year. A geothermal system uses the ground as a source of heat in winter, while in summer it is used as a source of heat. Through the use of geothermal probes, ie heat exchangers, and VRF City Multi WY systems is possible to extract heat to heat the room in winter and give heat to the ground to cool the environment during the summer.

Do you need materials and accessories for installation? Click here >

Do you need an estimate for the installation? Call us at 02.29510980, or Contact us >

More Information
Dimensions (LxHxD mm) (880x1450x550) + (880x1450x550)
Weight (Kg) 434
Power supply 380-400-415V / 50Hz / 3 (tensione/frequenza/fasi)
Supply Three-Phase
Max. Indoor Units 0
Refrigerant Gas R410A
Sound pressure level (dB) 55
