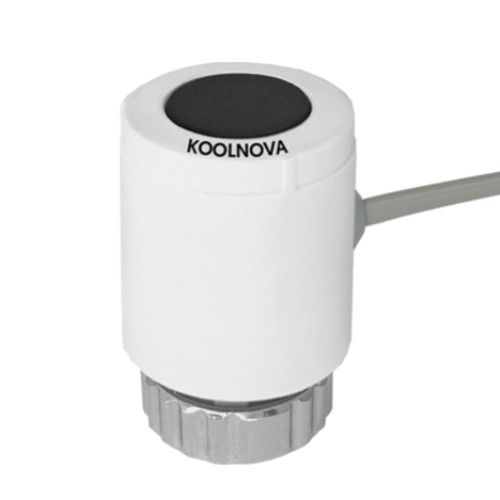

KOOLNOVA AIR CONTROL ACKB-TC-FI Motorized Actuator for Manifolds in Zoning Systems

KoolNova Air Control ACKB-TC-FI motorized actuator, for valves and manifolds, for opening and closing control in underfloor and ceiling heating and cooling systems.

€49.00

KOOLNOVA AIR CONTROL ACKB-TC-FI Motorized Actuator for Manifolds in Zoning Systems is available to buy in increments of 1

Order now for delivery between 12 November and 17 November

Details

KoolNova Air Control wired actuators for valves and manifolds, with built-in motor, are capable of controlling opening and closing in underfloor and ceiling heating and cooling systems.

Features:
- White finish with M30 x 1.5 mm metal threading;
- Power supply: 230 Vac;
- De-energized state: Normally Closed (N.C.);
- Mechanical position indicator in black, allowing visual monitoring of the current position of the actuator and the connected valve (open/closed). Raised = Open / Lowered = Closed;
- Maximum number of wired actuators allowed per relay: 20. Up to 16 outputs (320 wired actuators per system);
- Maximum water temperature: 110 °C;
- Mounting thread: M30 X 1.5 mm;
- Protection rating: IP54;
- Valve stroke: ~ 4.8 mm;
- Weight: 150 grams.

Installation Service

Our staff is qualified and experienced and it has all the necessary equipment to design and install any air conditioning systems to perfection.

Our technicians are in fact equipped with refrigeration license, as required by law, and perform regular refresher courses directly from the parent companies; therefore they are familiar with all the characteristics of the products sold on Shopclima.it in order to provide professional, qualified and guaranteed technical support.

Please feel free to contact us for more information or a customized quote.

Guarantees

Airclima Elettrodomex Srl guarantees the high quality of the products sold on Shopclima.it and is responsible to the consumer for any lack of conformity (excluding transport damage not reported to the carrier) existing at the time of delivery of the goods. Airclima Elettrodomex Srl undertakes, during the warranty period specified below, to repair (at its own warehouse) or replace as quickly as possible any parts or products found to be defective, provided that the defect is not due to damage or malfunction caused by the customer’s incompetence or negligence, lack of maintenance, use outside of the technical specifications or intended purpose, accidental events, or force majeure.

The warranty period is 24 months from the invoice date (12 months for professional buyers and users); therefore, any lack of conformity must be reported within 24 months from the date of purchase (12 months for professional buyers and users). The defect must be reported within 2 months from the moment it becomes apparent.

The lack of conformity may result from malfunction or manufacturing defect.

The warranty applies to products that present defects of conformity or hidden defects found at the time of purchase, provided they have been used correctly and in accordance with their intended purpose and any technical documentation. The warranty does not apply in cases of customer negligence or improper care, as well as in the event of mechanical or electronic modifications.
