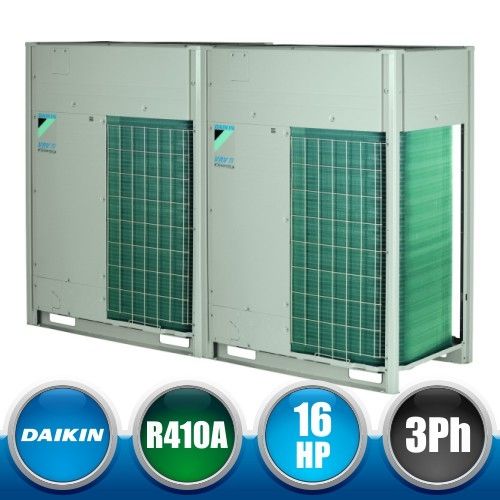

DAIKIN RXYLQ16T VRV IV Heat Pump Outdoor Unit Optimized for Heating - 16 Hp
Daikin RXYLQ16T outdoor unit in 16 Hp VRV IV heat pump optimized for heating in low external temperature conditions (stable heating capacity down to -15°C and extended heating down to -25°C).
€13,894.00
CUSTOM OPTIONS
DAIKIN RXYLQ16T VRV IV Heat Pump Outdoor Unit Optimized for Heating - 16 Hp is available to buy in increments of 1
The RXYLQ-T series has been specially developed for heating in the presence of low external temperatures (ideal as a single heating source): its heating capacity, in fact, is stable up to -15°C thanks to the steam injection compressor, whose extended operating range reaches -25°C.
Thanks to the hot gas bypass circuit in the heat exchanger, high reliability is guaranteed even in harsh winter climates. Defrost and heating times are significantly reduced compared to standard VRV heat pump systems.
Thanks to the centralized control it is possible to have precise temperature control and, thanks to the possibility of integration with ventilation systems and air handling units, all the heating requirements of a building are satisfied. There are so many compatible indoor units including the most elegant ones like the Emura and Nexura series.
Among the technologies and peculiarities of this device are the VRV configurator, the variable refrigerant gas temperature, the 7-segment display, the Inverter compressors (which regulate the speed of the compressor, adjusting its operation to the actual need by reducing energy consumption up to 30%), the 4-pipes heat exchanger, the electronic board cooled with the refrigerant and the new DC fan motor. The temperature technology of the refrigerant variable according to the atmospheric conditions allows, among other things, the personalization of the settings of the VRV unit in order to obtain the maximum levels of seasonal efficiency (+ 28%) and comfort (absence of currents of cold air). Furthermore, the outdoor units can be freely combined to adapt to any available installation space or for any efficiency requirement and, thanks to the high head (up to 78,4 Pa), they can also be installed in interior spaces.
Thanks to the longer pipes (maximum length: 190 meters / total length: 500 meters) and at a maximum height difference with the 30 meter indoor units, the installation is more simplified. Finally, compliance with the fluorinated gases regulation is guaranteed by the automatic control of the refrigerant charge.
| Dimensions (LxHxD mm) | 2480 x 1685 x 765 |
|---|---|
| Weight (Kg) | 604.0 |
| Power supply | Tensione/Freq./Fasi (V/Hz/n°) 380-415/50/3 |
| Supply | Three-Phase |
| Max. Indoor Units | 0 |
| Guaranteed operating range (cooling) | -5°C ˜ 43°C |
| Guaranteed operating range (heating) | -25°C ˜ 16°C |
| Refrigerant Gas | R410A |
| Sound pressure level (dB) | 55.0 (x2) |
| Sound Power (dB) | 75.0 (x2) |
Our staff is qualified and experienced and it has all the necessary equipment to design and install any air conditioning systems to perfection.
Our technicians are in fact equipped with refrigeration license, as required by law, and perform regular refresher courses directly from the parent companies; therefore they are familiar with all the characteristics of the products sold on Shopclima.it in order to provide professional, qualified and guaranteed technical support.
Please feel free to contact us for more information or a customized quote.
