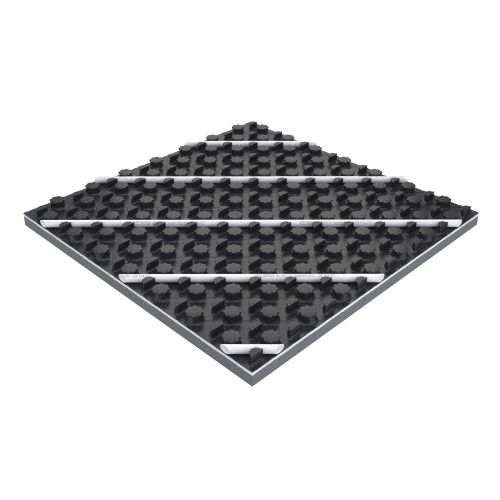

DAIKIN IT.ProtectDBA-s30 Protect dBA s30 Panel for Monopex Underfloor Heating System - 11 pcs (12.93 m2)
The Protect dBA s30 plates feature a thermal and acoustic insulating panel with a 1 mm thick thermoformed high-density PS polystyrene film.
Technical data
Thickness: 30/51 mm
Total thermal resistance: 0.75 m²K/W
Thermal conductivity: 0.04 W/mK
Evaluation index of the attenuation of the footfall noise level: ΔLw= 28 dB
All the plates of the Protect system, characterized by bosses in expanded polystyrene (EPS) with undercuts optimized for maximum ease of installation and sealing of the pipes, are covered on the top by a film (minimum thickness 0.8 mm) in polystyrene (PS) at high density thermoformed for vapor protection. These plates, which are suitable for heating pipes with diameters of 14 and 17 millimetres, can be installed both at a right angle and diagonally (75 mm pitch).
Dimensions
Plate: 1450x850 mm
Plate (net of installation): 1425x825 mm with an additional 25 mm of PS film on both sides for the interlocking connection of the plates
| Dimensions (LxHxD mm) | 1450x30/51x850 |
|---|---|
| Weight (Kg) | n.d. |
