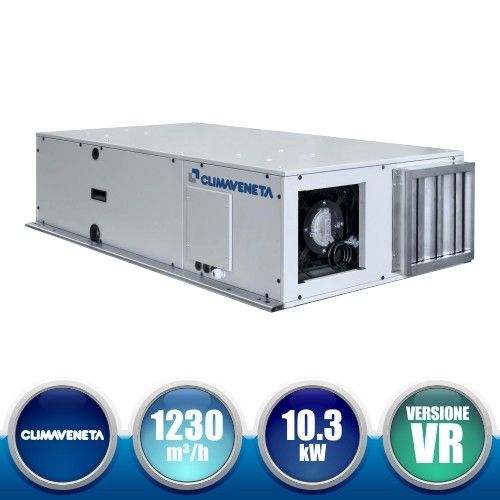

CLIMAVENTA HRD2-140-VR High Efficiency Heat Recovery Unit - Version VR, 1230 mc/h
Heat Recovery Unit High Efficiency ClimaVeneta HRD2-140, version for vertical installation with air supply on the right (VR), 1230 m3/h and 10, 33 kW. Designed for installations in commercial environments where the reduction of energy costs is very significant.
Irpef ().
€4,289.00
Availability: Out of stock
ClimaVeneta Heat Recovery Unit High Efficiency HRD2-140-VR, version for vertical installation with air supply on the right, 1230 m3/h and 10, 33 kW.
HRD2 heat recovery units have been designed for installations in commercial environments and for the tertiary sector, ie in those structures where the reduction of energy costs is very significant.
In the current air conditioning and air treatment systems it is necessary to create a forced ventilation to expel the treated air (with high energy consumption). Instead these units, using a high efficiency recuperator in static type aluminum plates, manage to contain the energy costs with a saving of about 70%.
These devices integrate well with traditional systems made with fan coils, water coolers or radiators, and can work both in summer and in winter.
Features:
- HHeat recovery unit high efficiency static air / air type with counterflow flows with aluminum heat exchange plates, equipped with additional sealing, integrated system of "by pass" motorized, with condensation drain pan in aluminum with drain, 1/2 "lateral (for horizontal units) and lower (for vertical units);
- High recovery efficiency & gt; 75% in dry conditions (Eurovent certification for all sizes);
- Centrifugal fans Plug Fan with free impeller with reverse blades directly coupled to EC electric motors with brushless technology;
- Self-supporting structure with infill panels (Thickness 25 mm) in internally galvanized sheet and pre-painted sheet (Finish RAL 9002) externally;
- Inspection doors with handles and removable panels;
- Longitudinal brackets for horizontal installations and support feet for vertical versions;
- Motorized ByPass damper for Free Cooling and Free Heating to make the most of the favorable conditions of outdoor air;
- Non-flammable thermal-acoustic insulation in mineral wool;
- Compact filters in the M5 efficiency class on room and F7 receptacle on external air intake, removable from below and laterally (efficiences measured according to EN 779:2012);
- Recessed electrical panel with electronic regulation and remote user interface for a complete control of all the unit's functions.
Do you need all the accessories for installing your air conditioning system? Click here >
Do you need an estimate for the installation? Call us at 02.29510980, or Contact us >
| Dimensions (LxHxD mm) | 1850x455x1030 |
|---|---|
| Weight (Kg) | 175.0 |
| Power supply | Tensione/Freq./Fasi (V/Hz/n°) 230/50/1 |
| Sound pressure level (dB) | 53/61 |
| External static pressure (Pa) | 265 |
| Air flow rate (m3/h) | 1200 - 1299 |
