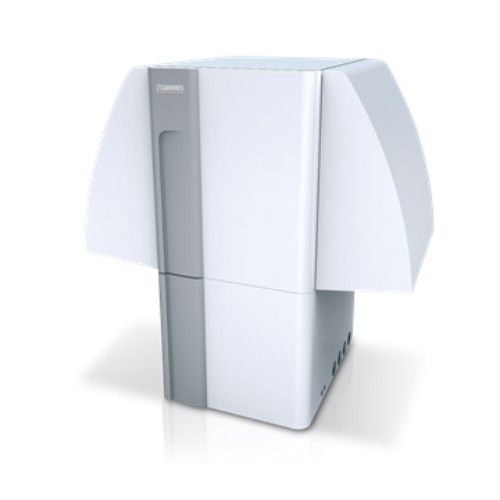

CLIMAVENETA i-NRG-0061m Reversible Heat Pump Total Heat Recovery with Air Source - Single phase 14,7 kW

Single phase reversible heat pump ClimaVeneta I-NRG-0061M total heat recovery with air source 14,7 kW, for external or internal installation, equipped with Compressor DC Inverter that guarantees a perfect energy distribution without waste.

For this product you can take advantage of the tax deduction of 50% and 65% ().

€10,304.00

Notify me when this product is in stock

Availability: Out of stock

Details

ClimaVeneta Single phase reversible heat pump I-NRG-0061M total heat recovery with air source 14,7 kW for external or internal installation.

i-NRG is the new heat pump with DC Inverter Compressor that guarantees a perfect energy distribution in line with the real needs of the building. In fact, thanks to the fan and the circulators (system and sanitary) with DC Inverter technology in direct current, this unit uses the energy in a sustainable manner ensuring high efficiency values and reduced operating costs.

i-NRG can operate all year round both single cycle (cooling, heating, DHW) and combined cycle in total recovery (ACS together with cooling).

The production of domestic hot water (ACS) is guaranteed by the dedicated heat exchanger for the total recovery of heat (or even partial) and accumulated in a tank, of adequate capacity, for sanitary use: in short, a production of domestic hot water practically Free!

The same unit can be installed both in the house and on the outside, thus guaranteeing; maximum installation flexibility.

The operating limits of this unit are extended throughout the year and especially in heat pump:

Maximum supply water temperature 60°C;
Maximum outdoor air temperature 45°C;
Minimum outdoor air temperature -15°C.

Peculiar features of the unit:

Structure and base in hot galvanized sheet metal and painted with epoxy powders;
Water side heat exchangers in stainless steel AISI 316 with high efficiency;
Plate-side heat exchangers made of AISI 316 stainless steel with high efficiency and low pressure drop for the production of water (hot and / or cold) for the plant independently of the production of domestic hot water;
DC Inverter Compressor Scroll with linear control of the delivered power;
Reduced inrush currents thanks to modulation via Inverter;
Electronic thermostatic valve;
Finned coils with copper pipes and aluminum wings with a high exchange surface guaranteeing zero losses;
Axial fan, external rotor, with 6-pole electric motor with built-in thermal protection, housed in aerodynamic profile nozzles and equipped with safety net;
Operating device for low outdoor air temperatures with continuous regulation of the fast rotation speed of the fans by means of a pressure transducer;
The hydraulic circuit is completed by a variable flow pump on the system side (operating curve selectable by the controller), energy efficiency in Class A, circulator Variable-flow inverter on the sanitary side (energy efficiency in Class A), expansion vessel, safety valve, differential pressure switch on the system side, pressure gauge and manual loading unit.

Do you need all the accessories for installing your air conditioning system? Click here >

Do you need an estimate for the installation? Call us at 02.29510980, or Contact us >

More Information

More Information
Dimensions (LxHxD mm)	750x1600x1050
Weight (Kg)	260.0
Power supply	Tensione/Freq./Fasi (V/Hz/n°) 230/50/1
Supply	Single-Phase
Refrigerant Gas	R410A
